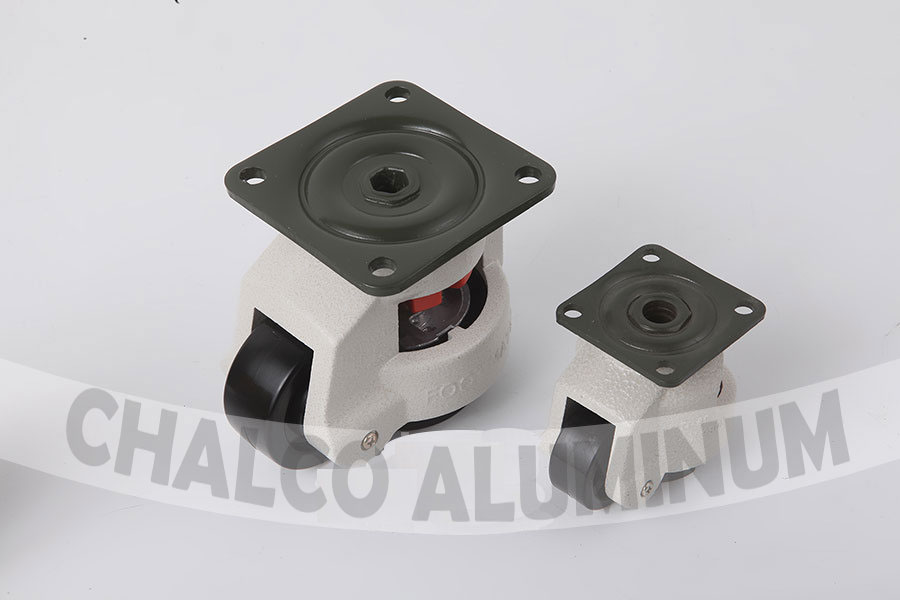

Foma Caster
Material: Cast Iron/ TPU or PA
Features: The horizontally adjustable supporting casters can be fixed and supported on the profile frame, and the rollers can be easily adjusted to adjust the height and have the function of dustproof.

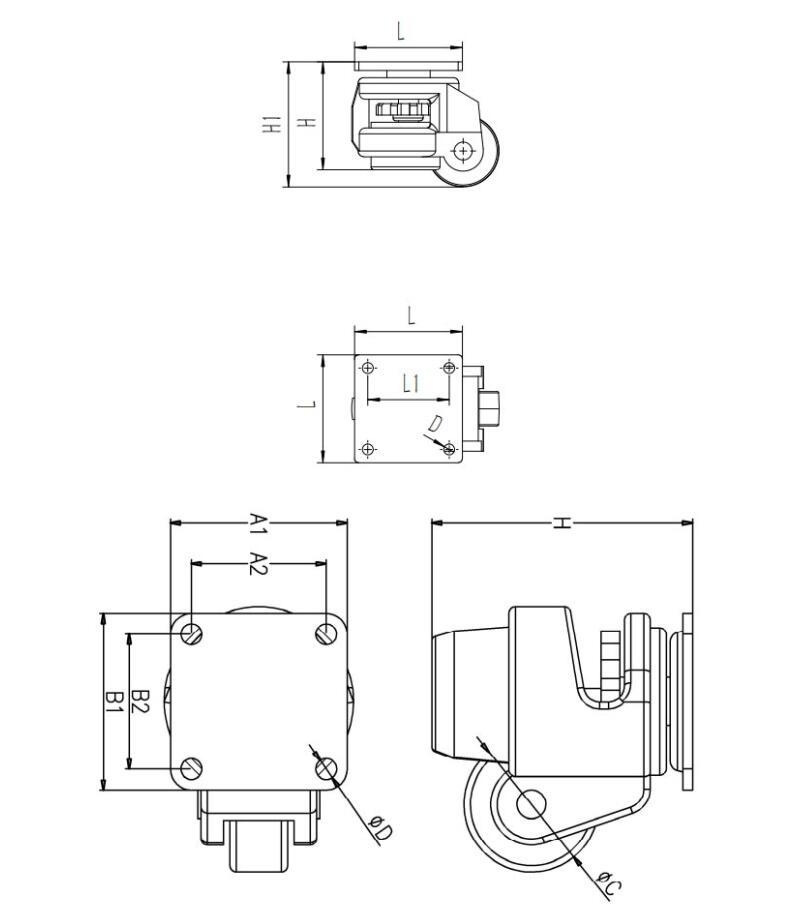

| Size |
Diameter (mm) |
Width (mm) |
Height (H) | Height (H1) | A*B | E*F | Hole Diameter |
Load Bearing (kg) |
| 40 F | 42 | 18.5 | 71 | 61--81 | 63*63 | 49*49 | 6.5 | 100 |
| 60 F | 50 | 23.5 | 82 | 72--92 | 70*70 | 58*58 | 7 | 250 |
| 80 F | 63 | 30 | 102 | 90--118 | 90*90 | 70*70 | 9 | 500 |
| 100 F | 75 | 30.5 | 122 | 110--138 | 95*95 | 70*70 | 11 | 750 |
| 120 F | 75 | 32 | 122 | 122--144 | 95*95 | 70*70 | 11 | 1000 |
| 150 F | 93 | 52 | 130 | 122--144 | 100*100 | 70*70 | 13 | 1500 |
