Frame to Floor

Caster

Caster
Material: Chrome Plate/TPU or PA
Features:
On the frame of the machine and cart made of aluminum profiles, casters with precision, mute, dustproof and laminated brake can be installed. Users can choose various types, different diameters, different materials or bearing ranges according to their own needs, as well as whether or not the caster with brake stop is available.

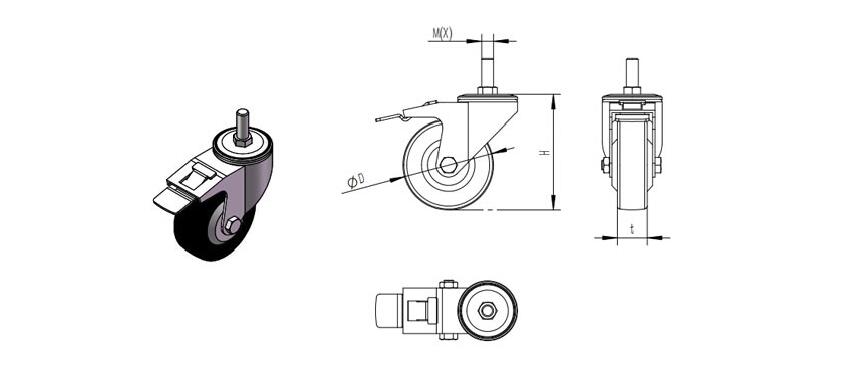

Size Diameter
(mm)
Width
(mm)
Height
(mm)
Load Bearing
(kg)
Brake
2.0 inch 50 25 80 50 Optional
2.5 inch 62 25 89 60 Optional
3 inch 75 25 110 90 Optional
4 inch 100 25 136 100 Optional
5 inch 125 25 160 120 Optional




Size Diameter
(mm)
Width
(mm)
Height
(mm)
(A*B) (E*F) Hole Diameter
(kg)
Load Bearing
(kg)
Brake
1.5 inch 40 25 58 60*43 45*31 8 50 Optional
2.0 inch 50 25 70 70*50 50*35 8 50 Optional
2.5 inch 63 25 95 95*66 74*45 8.5 80 Optional
3 inch 75 25 108 95*66 74*45 8.5 90 Optional
4 inch 100 25 132 95*66 74*45 8.5 100 Optional



Caster
